Product Summary
Universal Fit, Long Block Crate Engine Type

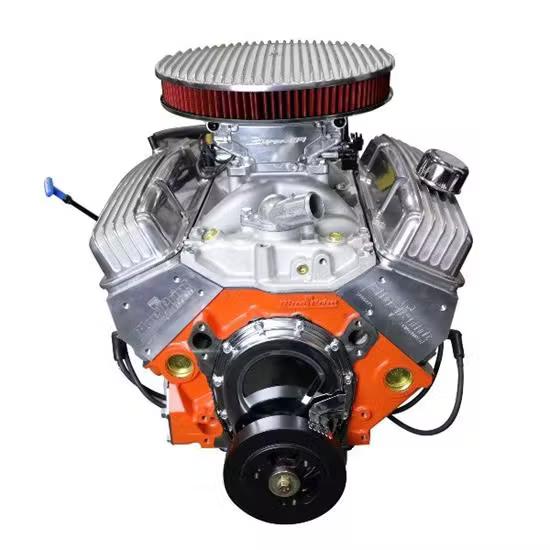

- BluePrint Engines 383 CI Low Profile Stroker Crate Engine
- Dyno Tested Small Block GM Style
- HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1
- Base Dressed Longblock with Fuel Injection
- With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons
Details
Engine Designed with small diameter harmonic balancer, Small cap Distributor, and drop base air cleaner, for vehicles with low firewall or hood clearance. such as Corvette, Tri Five Chevy, Camaro Etc.
Does NOT include Fuel pump or lines.
- BluePrint Engines 383 CI Low Profile Stroker Crate Engine
- Dyno Tested Small Block GM Style
- HP and torque : 436 HP / 443 FT LBS, Compression Ratio: 10.0:1
- Base Dressed Longblock with Fuel Injection
- With Aluminum Heads, Hydraulic Roller Cam, Cast Steel Crank, and Hypereutectic Pistons
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000″ Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.750″ Stroke
OEM type 5.700″ connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External Front/ External Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads – H8002K
64cc chamber
2.02″ intake/1.60″ exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.544 Intake .555 Exhaust
230 Intake / 236 Exhaust duration
@ .050, 110 ° lobe separation angle
IGNITION TIMING:
34 Degrees Total at 3500 RPM
ALSO INCLUDES:
Holley Sniper EFI System
Premium Vintage Valve covers
Premium Vintage Air Cleaner
6.75 inch Harmonic balancer
Spark plugs
Under Header Spark plug wires (Perfect for Rams Horn exhaust manifolds)
Oil pan
Timing cover
Aluminum Intake Manifold
Small cap Ready to run distributor equipped with Tach Drive and coil
Dyno tested and shipped with results
Warranty:
30 month / 50,000 mile
WARRANTY:
30 month / 50,000 mile
NOTES:
Not for use in pollution-controlled vehicles.
- For C2 Corvette, modification or replacement of factory hood and/or motor mounts will be required.
- Air cleaner has a maximum height of 11.5 inches when measured from block end rail (Horizontal sealing surface under the intake manifold)
- The Aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses.
This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75 inch stroke
KEY SPECS |
|
|---|---|
| MFG. Part # | BP38318CTFV |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 383 cu. in. |
| Horsepower | 436 horsepower |
| Torque | 443 ft./lbs. |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Steel |
| Combustion Chamber Volume | 64cc |
| Camshaft Duration (.050 in) | 230° intake / 236° exhaust |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Air Cleaner Included | Yes |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
GENERAL |
|
| Assembled | Yes |
| Cylinder Head Style | Assembled |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Valve Spring Included | Yes |
| Rocker Arms Included | Yes |
| Carburetor Quantity | One |
| Sold in Quantity | Each |
